Calibrated hollow sections (pickled)
|
Calibrated hollow sections
produced acc. pagal EN 10305-5,
|
|
|
||||||
|

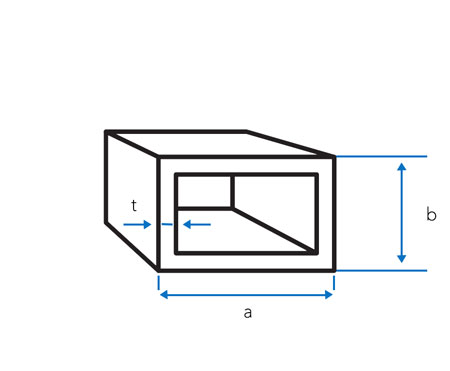

Dimensions, mm
|
Wall thickness, mm
|
|||||
|
a x b
|
t
|
|||||
|
1
|
1.5
|
2
|
2.5
|
3
|
||
|
10 x 10
|
0.269
|
0.4
|
||||
|
12 x 12
|
0.344
|
0.491
|
||||
|
14 x 14
|
0.41
|
0.585
|
||||
|
15 x 15
|
0.438
|
0.632
|
0.81
|
|||
|
16 x 16
|
0.47
|
0.68
|
0.88
|
|||
|
18 x 18
|
0.77
|
1.005
|
||||
|
20 x 10
|
0.438
|
0.632
|
0.81
|
|||
|
20 x 15
|
0.75
|
0.967
|
||||
|
20 x 20
|
0.595
|
0.868
|
1.124
|
|||
|
25 x 10
|
0.75
|
0.967
|
||||
|
25 x 15
|
0.868
|
1.124
|
||||
|
25 x 20
|
0.985
|
1.281
|
||||
|
25 x 25
|
1.103
|
1.438
|
||||
|
30 x 10
|
0.868
|
1.124
|
||||
|
30 x 15
|
0.985
|
1.281
|
||||
|
30 x 20
|
1.103
|
1.438
|
||||
|
30 x 25
|
1.221
|
1.595
|
||||
|
30 x 30
|
1.339
|
1.752
|
2.148
|
|||
|
35 x 15
|
1.103
|
1.438
|
||||
|
35 x 20
|
1.221
|
1.595
|
||||
|
35 x 25
|
1.339
|
1.752
|
||||
|
35 x 35
|
1.574
|
2.066
|
||||
|
40 x 10
|
1.103
|
1.438
|
||||
|
40 x 15
|
1.221
|
1.595
|
||||
|
40 x 20
|
1.339
|
1.752
|
||||
|
40 x 25
|
1.456
|
1.909
|
||||
|
40 x 30
|
1.574
|
2.066
|
||||
|
40 x 40
|
1.81
|
2.38
|
3,334
|
|||
|
45 x 20
|
1.456
|
1.909
|
||||
|
45 x 25
|
1.574
|
2.066
|
||||
|
45 x 45
|
2.045
|
2.694
|
||||
|
50 x 10
|
1.339
|
1.752
|
||||
|
50 x 15
|
1.456
|
1.909
|
||||
|
50 x 20
|
1.574
|
2.066
|
2.541
|
|||
|
50 x 25
|
1.692
|
2.223
|
||||
|
50 x 30
|
1.81
|
2.38
|
||||
|
50 x 40
|
2.045
|
2.694
|
||||
|
50 x 50
|
2.281
|
3.008
|
||||
|
60 x 10
|
1.574
|
2.066
|
||||
|
60 x 20
|
1.81
|
2.38
|
||||
|
60 x 30
|
2.045
|
2.694
|
||||
|
60 x 40
|
2.281
|
3.008
|
||||
|
60 x 60
|
2.752
|
3.636
|
||||
|
70 x 20
|
2.045
|
2.694
|
||||
|
80 x 20
|
2.281
|
3.008
|
||||
|
80 x 30
|
2.516
|
3.322
|
||||
|
80 x 40
|
2.752
|
3.636
|
||||
|
80 x 50
|
3.88
|
|||||
|
100 x 20
|
3,636
|
|||||
| ↑ | ← |
