Calibrated hollow sections (pickled)

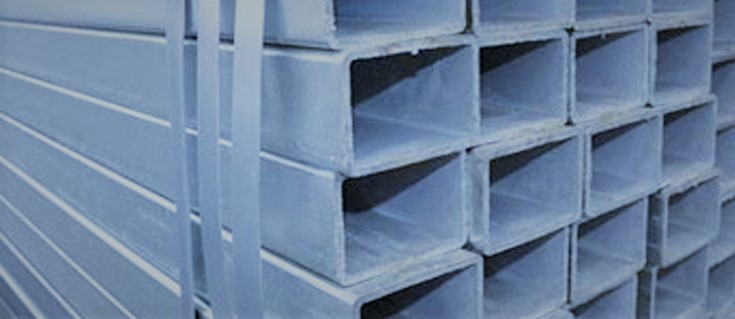

Calibrated hollow sections
produced acc. pagal EN 10305-5,
|
|
Dimensions, mm | Wall thickness, mm | |||||
a x b | t | |||||
1 | 1.5 | 2 | 2.5 | 3 | ||
10 x 10 | 0.269 | 0.4 | | |||
12 x 12 | 0.344 | 0.491 | | |||
14 x 14 | 0.41 | 0.585 | | |||
15 x 15 | 0.438 | 0.632 | 0.81 | |||
16 x 16 | 0.47 | 0.68 | 0.88 | |||
18 x 18 | | 0.77 | 1.005 | |||
20 x 10 | 0.438 | 0.632 | 0.81 | |||
20 x 15 | 0.75 | 0.967 | ||||
20 x 20 | 0.595 | 0.868 | 1.124 | |||
25 x 10 | 0.75 | 0.967 | ||||
25 x 15 | 0.868 | 1.124 | ||||
25 x 20 | 0.985 | 1.281 | ||||
25 x 25 | 1.103 | 1.438 | ||||
30 x 10 | 0.868 | 1.124 | ||||
30 x 15 | 0.985 | 1.281 | ||||
30 x 20 | 1.103 | 1.438 | ||||
30 x 25 | 1.221 | 1.595 | ||||
30 x 30 | 1.339 | 1.752 | 2.148 | | ||
35 x 15 | 1.103 | 1.438 | ||||
35 x 20 | 1.221 | 1.595 | ||||
35 x 25 | 1.339 | 1.752 | ||||
35 x 35 | 1.574 | 2.066 | ||||
40 x 10 | 1.103 | 1.438 | ||||
40 x 15 | 1.221 | 1.595 | ||||
40 x 20 | 1.339 | 1.752 | ||||
40 x 25 | 1.456 | 1.909 | ||||
40 x 30 | 1.574 | 2.066 | ||||
40 x 40 | 1.81 | 2.38 | | 3,334 | ||
45 x 20 | 1.456 | 1.909 | ||||
45 x 25 | 1.574 | 2.066 | ||||
45 x 45 | 2.045 | 2.694 | ||||
50 x 10 | 1.339 | 1.752 | ||||
50 x 15 | 1.456 | 1.909 | ||||
50 x 20 | 1.574 | 2.066 | 2.541 | | ||
50 x 25 | 1.692 | 2.223 | ||||
50 x 30 | 1.81 | 2.38 | ||||
50 x 40 | 2.045 | 2.694 | ||||
50 x 50 | 2.281 | 3.008 | ||||
60 x 10 | 1.574 | 2.066 | ||||
60 x 20 | 1.81 | 2.38 | ||||
60 x 30 | 2.045 | 2.694 | ||||
60 x 40 | 2.281 | 3.008 | ||||
60 x 60 | 2.752 | 3.636 | ||||
70 x 20 | 2.045 | 2.694 | ||||
80 x 20 | 2.281 | 3.008 | ||||
80 x 30 | 2.516 | 3.322 | | | ||
80 x 40 | 2.752 | 3.636 | | | ||
80 x 50 | | 3.88 | | | ||
100 x 20 | | 3,636 |
↑ | ← |
