T - bars
T - bars
produced acc. EN 10055, steel grade S235JR, S355J2
|
|

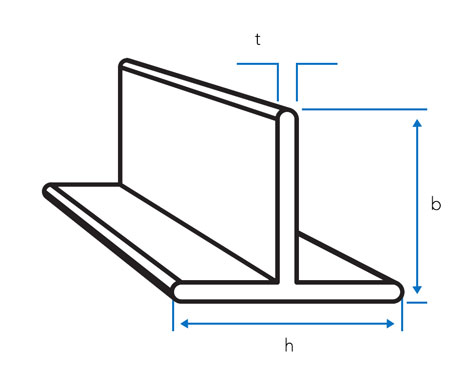

Dimensions, mm | Wall thickness, mm | Theoretical weight, kg/m |
h x b | ||
20 x 20 | 3 | 0.88 |
25 x 25 | 3.5 | 1.29 |
30 x 30 | 4 | 1.77 |
35 x 35 | 4 | 2.1 |
35 x 35 | 4.5 | 2.33 |
40 x 40 | 5 | 2.96 |
45 x 45 | 5.5 | 3.67 |
50 x 50 | 6 | 4.44 |
60 x 60 | 7 | 6.23 |
70 x 70 | 8 | 8.32 |
80 x 80 | 9 | 10.7 |
90 x 90 | 10 | 13.4 |
100 x 100 | 11 | 16.4 |
120 x 120 | 13 | 23.2 |
140 x 140 | 15 | 31.3 |
↑ | ← |
