Oval hollow sections
Oval hollow sections
produced acc. EN 10305-3, EN 10219,
|
|

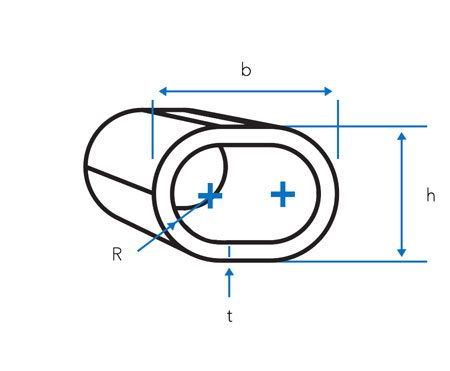

Dimensions, mm | Wall thickness, mm / theoretical weight, kg/m | ||||
b x h | R | t | |||
1 | 1.2 | 1.5 | 2 | ||
30 x 10 | 0.54 | 0.64 | 0.79 | 1.03 | |
30 x 15 | 7.5 | 0.58 | 0.69 | 0.85 | 1.11 |
35 x 15 | 7.5 | 0.66 | 0.79 | 0.98 | 1.28 |
35 x 20 | 10 | 0.71 | 0.85 | 1,04 | 1.36 |
38 x 16 | 7.5 | 0.72 | 0.85 | 1,05 | 1.38 |
38 x 20 | 10 | 0.76 | 0.91 | 1.12 | 1.47 |
40 x 20 | 10 | 0.78 | 0.93 | 1.16 | 1.52 |
50 x 20 | 10 | 1,15 | 1,43 | 1.92 | |
50 x 25 | | 1,20 | 1,49 | 1,97 | |
50 x 30 | 15 | | 1.25 | 1.55 | 2.03 |
60 x 20 | 10 | | 1.38 | 1.78 | 2.27 |
60 x 30 | 15 | | 1.44 | 1.81 | 2.39 |
↑ | ← |
